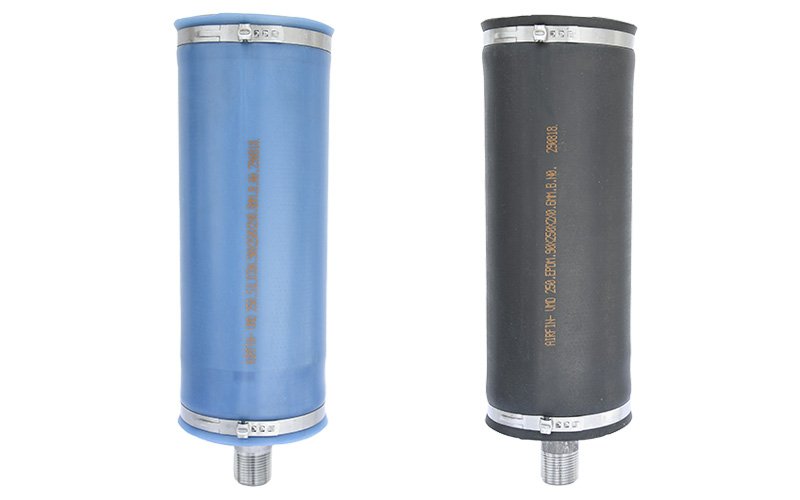

AIRFIN Vertical Membrane Diffusers
| General Specifications: | |
| Type : | Fine bubble tube diffuser-vertical mounting design |
| Size : | 90 mm dia X 250 mm length |
| Connection : | 3/4" BSP |
| Construction : | •Robust support made of PVC + ABS With ¾" BSP Male-Female thread • Diffusing tube with special perforation • Fixing element • Low buoyancy construction • Floodable |
| Bubble size : | 1.0 - 2.0 mm |
| Perforation size and no. : | 0.6/1 mm and 7380 no. of slits |
| Tube material : | EPDM/SILICON |
| Tube Description : | Tube Ø90 mm with staggered horizontal special perforation, Aeration zone approx. 550 cm2/per piece Unperforated zone with valve effect allows intermittent operation |
| Tube endurance : | Constant quality for many years Operation times of 7 - 10 years are usual, up to 12 years of operation have been reached, good resistance against ozone, weather influence, aging various acids and lye |
| Oxygen transfer efficiency : |
OTE valve up to 24g O2 / Nm3 X m have been measured by an independent institute for the VMD diffusers OTE values depend on diffuser density, depth oair introduction and the air flow rate |
| Air-flow range per diffuser : |
0 - 10 m3 / h X m (excellent air controllability) Suitable for intermittent operation Optimal fumigation range 2 - 6 m3 / hr. per diffuser |
| Head loss : | 45 - 92 mbar +/- 10 mbar |
| Connection : | Nipple 3/4" thread |
| Application : | Ideal for SAFF System, for high TDS, SS contained effluent |
