Coarse Bubble Diffusers

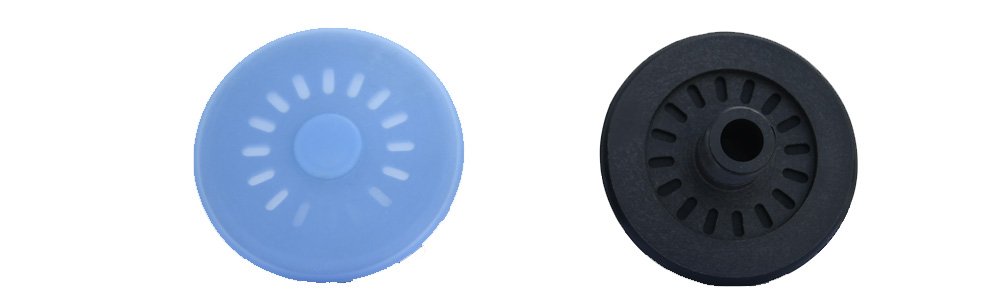

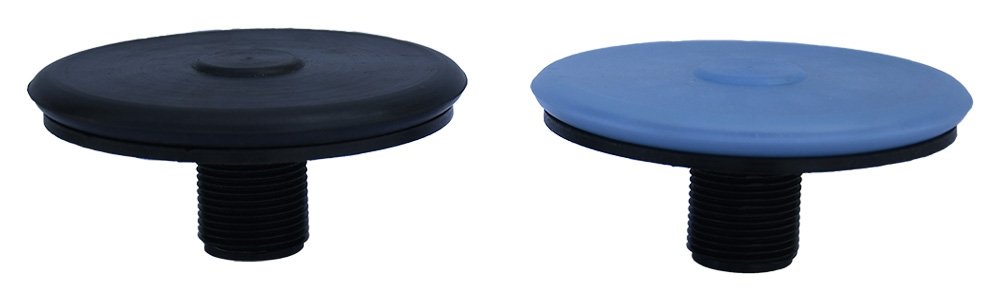

Our JCB series Diffusers have been engineered in a simplified design consisting of two parts: The support base and flexible diaphragm. The diaphragm is designed to provide extended life and optimum performance due to its specially formulated EPDM/Silicon rubber material.

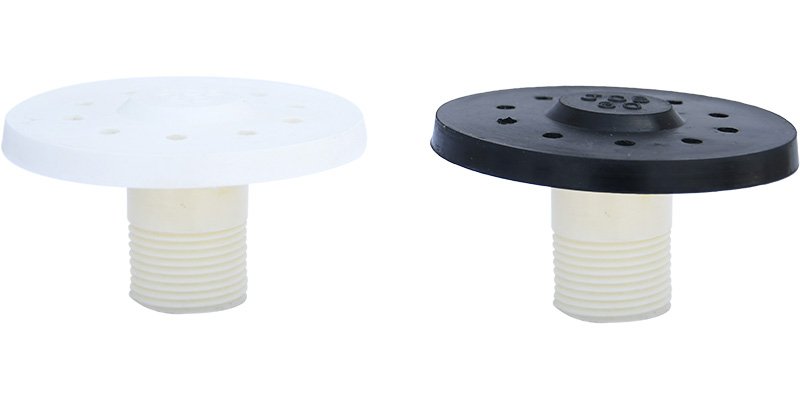

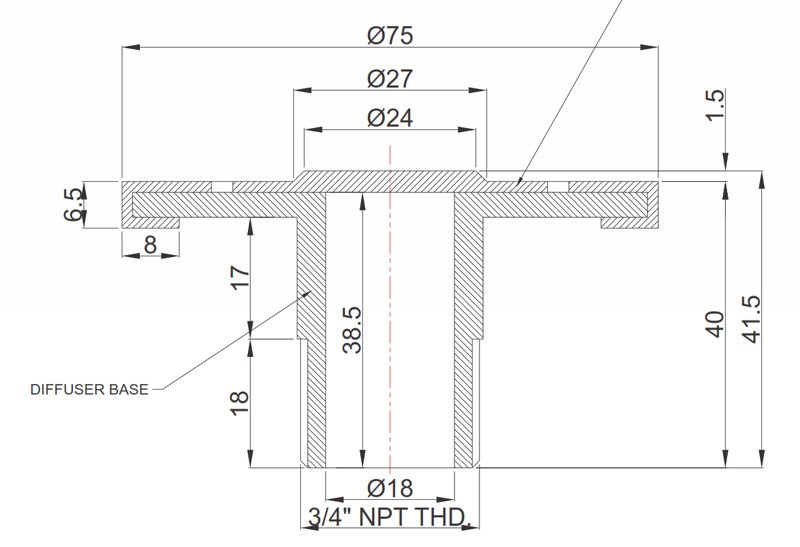

| Specifications | |
| Shape | Disc |
| Size dia | 80 mm (3") |
| Bubble size | 4 - 5 mm |
| Membrane material | EPDM / Silicon |
| Membrane support | PP / Steel |
| Operating Temp | 35 ºC (max 85ºC) |
| Air discharge from | Top |
| Air discharge ports | 10 |
| Standard Airflow/diffuser | 1-5 Nm3/hr |
| Air flow Range/diffuser | 1-15 Nm3/hr |
| Min req. Qty for mixing | 2 |
| End connection male thread | ¾" BSP / NPT |
| Special arrangement | Non Clog |
| Max pressure allowed | 1 Kg/cm2 |
| Weight | 40 gm |

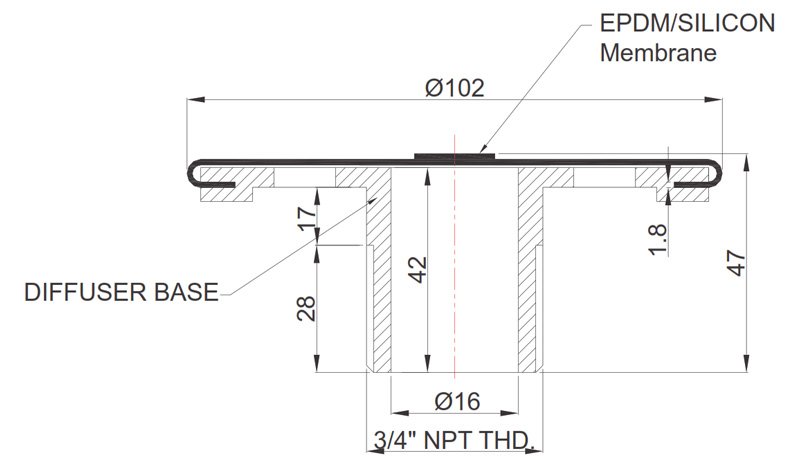

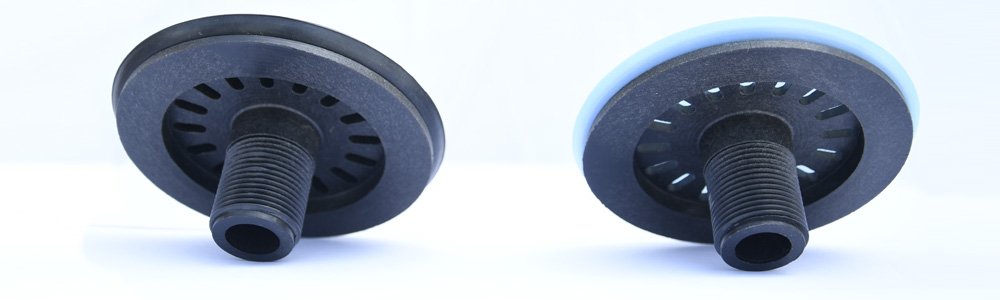

| Specifications | |
| Shape | Disc |
| Size dia | 105 mm (4") |
| Bubble size | 4 - 5 mm |
| Membrane material | EPDM / Silicon |
| Membrane support | GFPP |
| Operating Temp | 35 ºC (max 85ºC) |
| Air discharge from | Bottom |
| Air discharge ports | 16 |
| Standard Airflow/diffuser | 10 Nm3/hr |
| Air flow Range/diffuser | 2-25 Nm3/hr |
| Min req. Qty for mixing | 1 |
| End connection male thread | ¾" NPT |
| Special arrangement | Non Clog |
| Max pressure allowed | 1.5 Kg/cm2 |
| Weight | 100 gm |

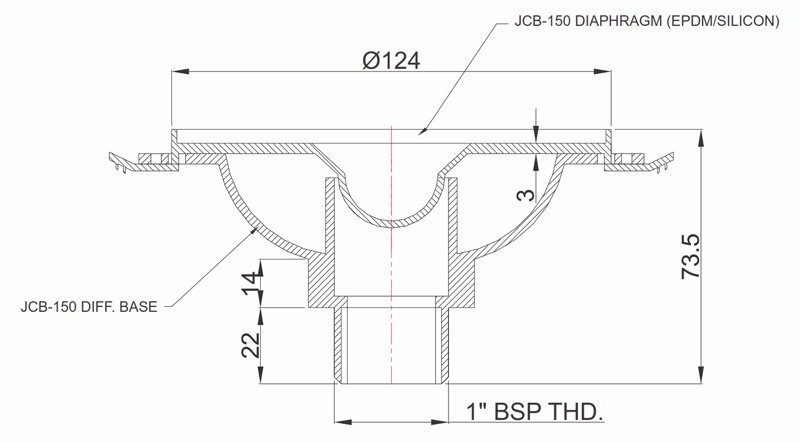

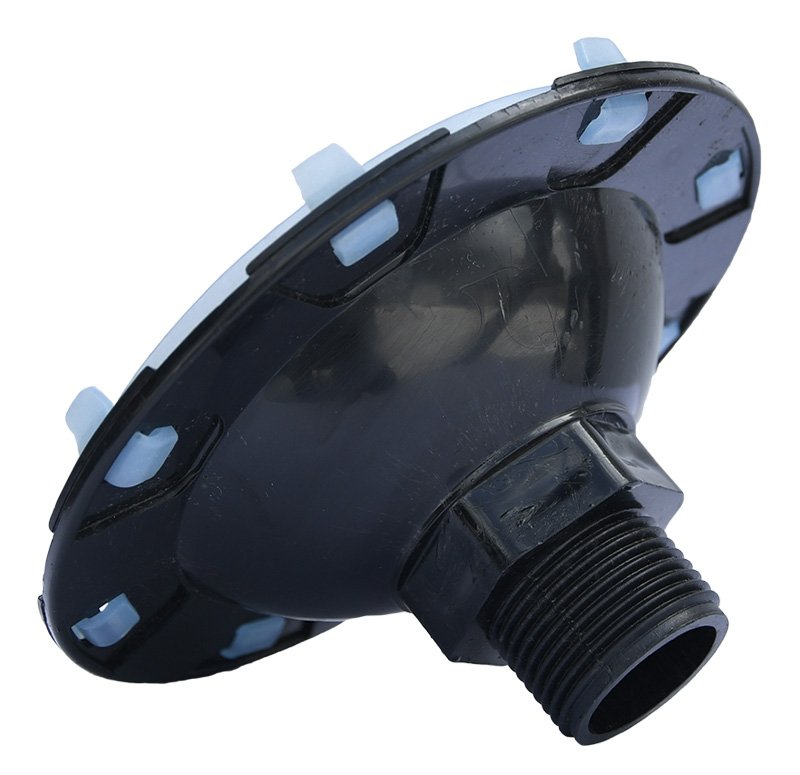

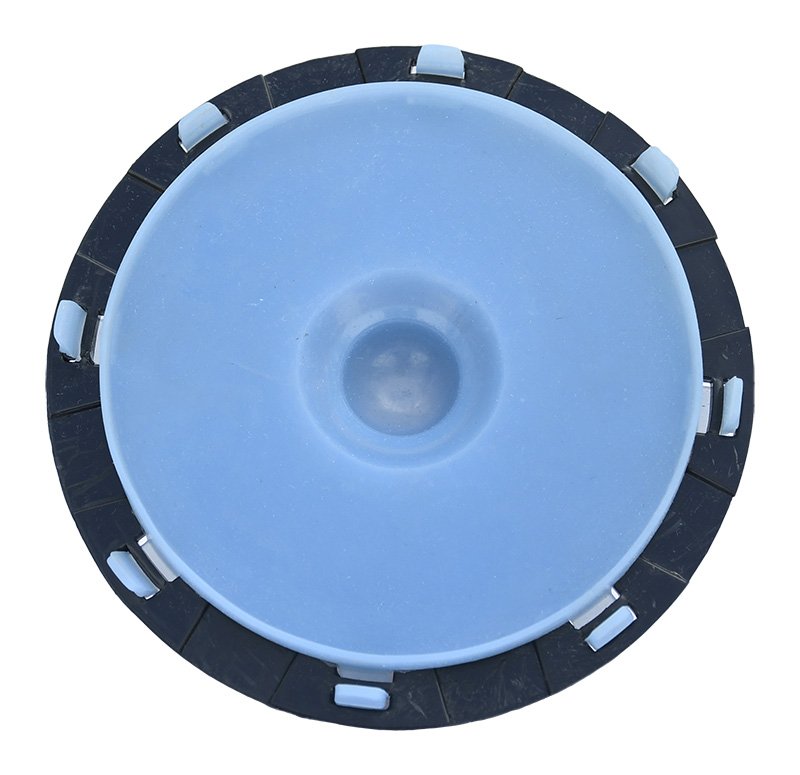

| Specifications | |
| Shape | Disc |
| Size dia | 150 mm (6") |
| Bubble size | 4 - 5 mm |
| Membrane material | EPDM / Silicon |
| Membrane support | ABS |
| Operating Temp | 35 ºC (max 85ºC) |
| Air discharge from | Peripheral |
| Air discharge ports | 8 |
| Standard Airflow/diffuser | 15 Nm3/hr |
| Air flow Range/diffuser | 4-25 Nm3/hr |
| Min req. Qty for mixing | 1 |
| End connection male thread | ¾" BSP/NPT |
| Special arrangement | Non Clog |
| Max pressure allowed | 1.5 Kg/cm2 |
| Weight | 120 gm |
